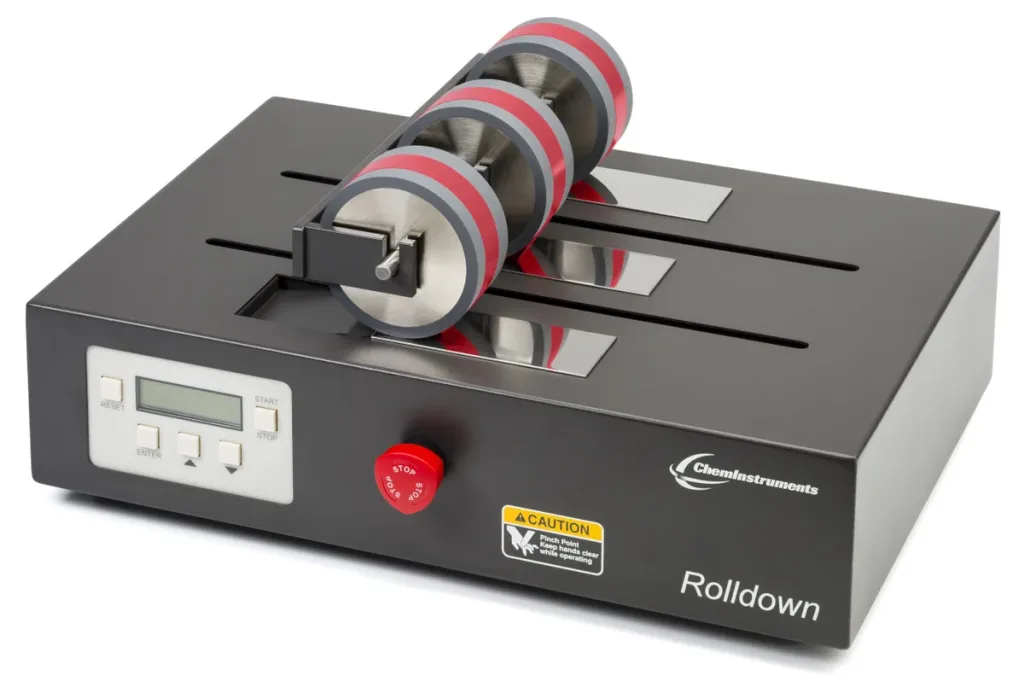

Thiết bị cán phảng chuẩn FINAT Rolldown

• Rugged construction, capable of withstanding the abuse of the production environment
• Simple, one-touch operation creates very repeatable test samples
• 4.5lb steel roll with Shore A scale 80 durometer silicone rubber covering - PSTC/ASTM specs
• 2.0Kg steel roll with Shore A scale 80 durometer silicone rubber covering - FINAT spec
• Steel roll is nickel plated to eliminate corrosion
• Thickness of rubber covering is 1/4" (6 mm)
• PSTC/ASTM specs: finished roll dimensions are 1.80" wide and 3.75" diameter
• FINAT spec: finished roll dimensions are 50mm wide and 91mm diameter
• Accepts test panels up to 3" x 9" (76 mm x 229 mm)
• Adjustable stroke length from .5" to 8" (1 cm - 20 cm)
• Programmable cycle counts from 1 to 10 or continuous
• Operating temperature range 32° - 150° F (0° - 70° C)
• Selectable speeds from 5-150"/min (2-60mm/sec) & 200mm/sec (FINAT speed)
• Universal input voltage from 85-265 VAC (50/60 Hz)

Accessories

• Test panels
• Test panel stops - Allow's you to use thicker test panels without the panels getting pushed out of the way by the rolls
• Specimen tape cutter
• Test panel holder

Options

• Single roll version: Model RD-1000
• Triple roll version: Model RD-3000
• FINAT version: includes FTM specified rolls
• Custom speeds
• Custom rolls: materials, widths and weights
• Custom modifications
• PSTC and TLMI testing manuals and videos

Specifications

• Height: 9" (23 cm)
• Width:  19" (48 cm)
• Depth: 13" (33 cm)
• Weight:  Single roller 37 lbs (17 Kg) Triple roller 47 lbs (21 Kg)
