- Osmium Plasma Coater OPC80T dòng máy phủ mẫu dòng bột Osmium để tạo một lớp hàng dẫn điện nên bề mặt mẫu mà không có những vết nứt như phủ vật liệu Pt, Au như máy phủ thông thường.
- Mã sản phẩm
- OPC80T
- Thương hiệu
- Filgen
- Xuất xứ
- Japan
- Kho hàng
- Có sẵn
- Bảo hành
- 12 tháng
Giá bán: Liên hệ
- Tư vấn sản phẩm: 024 3994 2289
- Dịch vụ sửa chữa, bảo dưỡng sau bán hàng
- Phụ kiện thay thế, vật tư tiêu hao
Osmium Plasma Coater
Osmium Plasma Coater(OPC) is the plasma coating device that uses the DC glow discharge method to coat conductive thin film mainly for SEM samples.
Benefits of Osmium Plasma Coater
|
Operability |
Osmium Conductive Film |
Plasma-Polymerized |
||||||||||||||||||||||||||||||||||
|
|
|
|
||||||||||||||||||||||||||||||||||
|
|
|
Principle

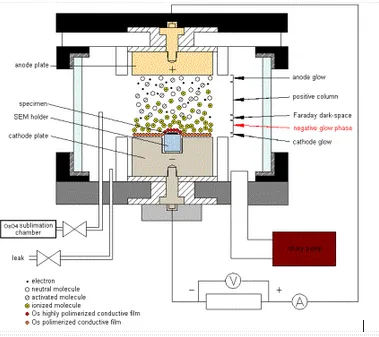

A small amount of osmium tetroxide(OsO4)gas / naphthalene gas(C10H18) is introduced into the small gas reaction vessel that equips with an anode plate and a cathode plate.
Then, in the gas reaction vessel, when a DC glow discharge is generated under a thin sublimation gas pressure, the osmium metal molecules excited by the collision of electrons instantaneously become plasma between the two electrodes. The positive column and the negative glow phase are separated, and the blue-violet light of the negative glow phase emits.
At the same time, the positive ion metal molecules instantly adhere to the surface of the specimen, which is placed in the negative glow phase area on the cathode plate, and an osmium metal thin film/plasma-polymerized film(naphthalene) is formed.
With an osmium metal thin film on the surface of the SEM specimen, an extremely clear image can be obtained.
Application
|
|
Product Lineup
Standard Models
|
|
|
| Osmium Plasma Coater (OPC) is the plasma coating device that uses the D.C. glow discharge method to coat conductive thin film mainly for SEM samples. |
| Conductive ultra-thin film mechanism |
|
Conductive ultra thin film deposition mechanism can be optionally installed on standard type. In addition, it is possible to attach an option to a device(compatible model) that has already been used. Optional mounting is possible with the following 3 patterns. ・Low current system only ・Mixed gas system only ・Both Low current system and Mixed gas system The Mixed gas system of the conductive ultra-thin film mechanism and the hydrophilization treatment mechanism can not be installed at the same time. The film forming method used for the conductive thin film mechanism is patented by 「Filgen, Inc.」.
|
 |
Comparison of 「Both Low current system and Mixed gas system」 mounting type
and 「Low current system」 mounting type
⇒Technical data「Osmium ultra thin film-Cross-sectional image of plasma-polymerized film by TEM」 |
Low current system and Mixed gas system
|
Price
|
【Price When installing an optional mechanism at the same time as purchasing a new divice】
|
【Price when installing the optional mechanism on the device already delivered】
|
| Hydrophilization treatment mechanism |
|
Hydrophilization treatment mechanism can be optionally installed on standard type. In addition, it is possible to attach an option to a device(compatible model) that has already been used. The Mixed gas system of the conductive ultra-thin film mechanism and the hydrophilization treatment mechanism can not be installed at the same time. By performing a hydrophilization treatment, it is possible to form a highly adhesive osmium thin film on the sample surface.
|
 |
Appication
| ◆ | Pre-hydrophilization treatment for osmium coating on fluoro resin surface etc. | |
| ◆ | Peeling prevention between embedding resin and data | |
| ◆ | Hydrophilization of the support film surface for TEM | |
| ◆ | Hydrophilization of grids for TEM | |
| ◆ | Hydrophilization of the cutting edge of a diamond knife for ultramicrotome | |
| ◆ | Improved wettability |
Price
|
【Price When installing an optional mechanism at the same time as purchasing a new divice】
|
【Price when installing the optional mechanism on the device already delivered】
|
| Deep sample mechanism |
|
Deep sample mechanism can be optionally installed on standard type. In addition, it is possible to attach an option to a device(compatible model) that has already been used. When the deep sample mechanism is optionally attached to the standard type, the OPC60A can be used for samples up to 36mmφ×44mm(H), and the OPC80T can be used for samples 46mmφ×44mm(H). The external dimensions and weight of the main unit change with the optional installation.（Please contact us for details.） |
Comparison of Deep sample mechanism mounted type and Standard type cathode plates
|
Price
|
【Price When installing an optional mechanism at the same time as purchasing a new divice】
|
【Price when installing the optional mechanism on the device already delivered】
|
| Accessories |
Osmium reservoir transport container
|
This is a dedicated transport container for the Osmium reservoir.
・All stainless steel The packing procedure is easy as follows.
|
|
||||||||||||||||
Dedicated vacuum grease for O-ring（0.5ml）
The vacuum grease for the O-ring of the Osmium plasma coater.
・It has excellent durability against highly reactive gases such as Osmium tetroxide and Ruthenium tetroxide.
・It can be used for O-ring replacement and movable parts of the reservoir.
| Product | Vacuum grease for O-ring (0.5ml) | |
| Model | VS-GR | |
| Price | Ask for a quote | |
 |
hông số kỹ thuật chính model OPC80T:
- Buông mẫu: Làm bằng vật liệu thủy tính (glass), 160(φ) x 105(H) mm.
- Kích thước tối đa mẫu: 44(W) x 44(D) x 4(H) mm or 32(φ) x 14(H) mm.
- Gắn được các mẫu SEM kích thước: 10 mmφ x 2 pcs and 15 mmφ x 2 pcs and 32 mmφ x 1 pc..
- Bề dầy lớp phủ: Từ vài Nano tới vài trăm nm.
- Bề dầy lớp phủ có thể set nhỏ nhất: 0.1nm ở chế độ Ultra - thin film mode/ 1nm ở chế độ Normal mode.
- Loại vật liệu phủ: Osmium conductive film, Plasma-polymerized film (napthalene).
- Đặc tính bộ OsO4: Detachable (capable to store in freezer) / Gas port integrated safety locking pin / Observation window / Built-in ampoule cutter.
- Đặc tính bộ Naphthalene: Heater for effective sublimation / Observation window
- Cách đưa khí vào ra: Tự động điều khiển nhờ đầu đo chân không, solenoids và bơm hút chân không.
- Nguồn điện: 100VAC, 1 pha, 50Hz, 12A (bao gồm cả tải của bơm sơ cấp).
- Kích thước:450(w) x 410(D) x 390(H) mm.
- Trọng lượng: 30kg.
- Thông số bơm sơ cấp: Điện áp 100VAC, 50Hz, 550W, 9.0A, tốc độ bơm 200L/min (50Hz), kích thước: 170(W) x 520(L) x 560(H) mm, trọng lượng: 31kg.
Technical data
|
OPC60A is used to coat conductive film for SEM, FE-SEM specimens. OPC80T is used to coat conductive film for SEM, FE-SEM specimens and support film for TEM specimens. If you use OPC, you can coat osmium conductive film safety and easily. You can operate OPC automatically. As long as you coat osmium of a few nm in a specimen with OPC, the specimen can get enough conductivity. Because osmium conductive film can be coated extremely uniformly. Besides osmium conductive film is no heat damage. OPC is epoch-making equipment. OPC80T can coat not only osmium conductive film but also naphthalene film. Naphthalene film is non-conductive, so strong, medicine character-resistant, and heat-resistant. Besides naphthalene film is applied as a support film. Naphthalene film is also applied as a protective film of specimens for FIB(Focused Ion Beam Equipment). ※See various technical data by clicking the following items.
|
