Four E's scientific

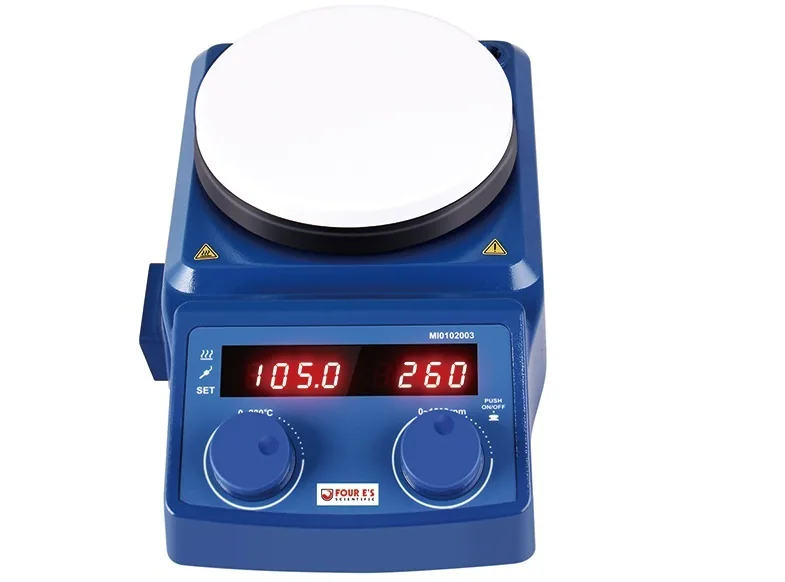

Máy khuấy từ gia nhiệt MI0102003
- Máy khuấy từ gia nhiệt; Máy khuấy từ; Magnetic Hotplate Stirrer; Stirrer; Hotplate.
- Mã sản phẩm
- MI0102003
- Thương hiệu
- Four E's scientific
- Xuất xứ
- Trung Quốc
- Kho hàng
- Có sẵn
- Bảo hành
- 12 tháng
Giá bán: Liên hệ
- Tư vấn sản phẩm: 024 3994 2289
- Dịch vụ sửa chữa, bảo dưỡng sau bán hàng
- Phụ kiện thay thế, vật tư tiêu hao
Introduction:
The 5 inch Round-top LED digital Magnetic Hotplate Stirrer is with 280℃ heating temperature, which is the only low temperature magnetic stirrer in the world. It has micro controller and LED display, especially the stirrer can work with external temperature sensor PT1000.
Features:
LED digital display for easy reading
Special plastic casing is high-temperature resistant and strong flame-retardant
Temperature is up to 280°C and the safety temperature is 50-320°C
Stainless steel with ceramic coated hotplate allows for immediate heat transfer
3D digital wheel operation to adjust the speed and temperature
Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode
Specification:
|
Model |
MI0102003 |
|
Stirring positions |
1 |
|
Set-up plate dimensions |
Ø 135 mm |
|
Set-up plate material |
Stainless steel with ceramic coated |
|
Motor type |
DC motor |
|
Max. stirring quantity (H2O) [L] |
5 |
|
Max. stirring bar [L x Φ, mm] |
55*10 |
|
Motor rating input [W] |
3 |
|
Motor rating output [W] |
2.5 |
|
Speed range [rpm] |
100-1500 |
|
Speed display |
LED |
|
Heating output [W] |
600 |
|
Heating temperature range [°C] |
Room temp.- 280 |
|
Temperature display |
LED |
|
Temperature display accuracy [°C] |
±0.1 |
|
Safety temperature [°C] |
50-320 |
|
External temperature sensor |
PT1000 |
|
Control accuracy with external temperature sensor PT1000 [°C] |
±1 |
|
Hot surface warning |
50°C |
|
Permissible ambient temperature [°C] |
5 - 40 |
|
Permissible relative humidity |
80% |
|
Protection class |
IP 42 |
|
Voltage [VAC] |
200-240/100-120 |
|
Frequency [Hz] |
50/60 |
