Jeiotech

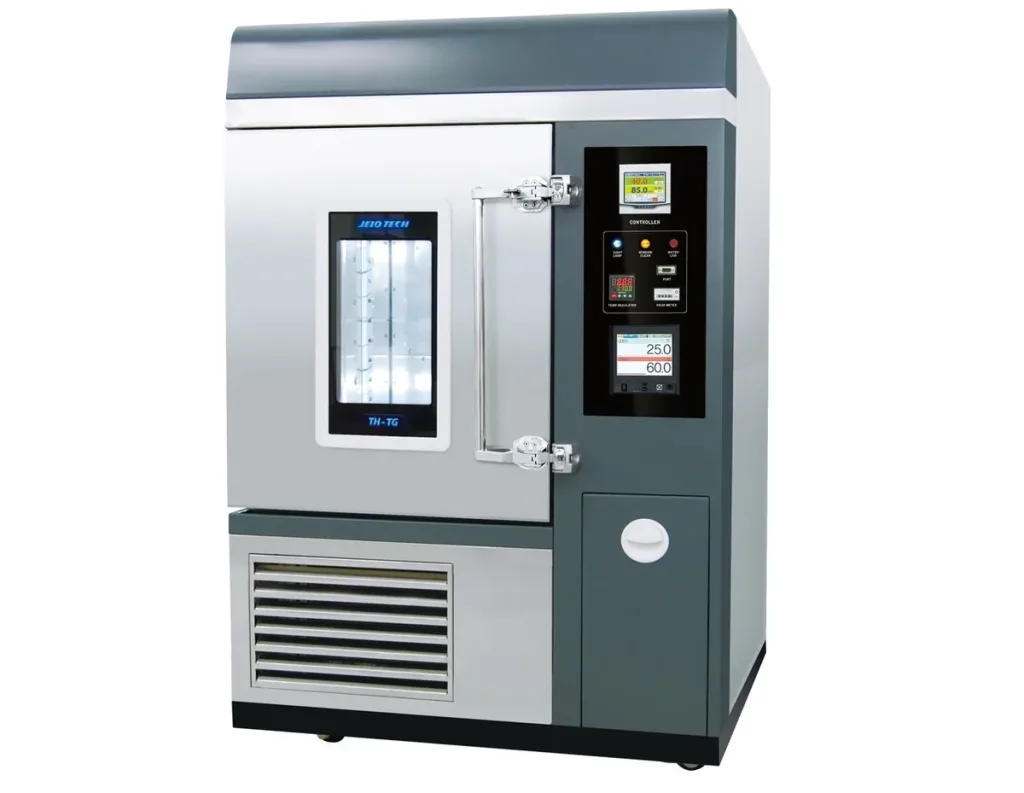

Buông nhiệt độ và độ ẩm

Temp. & Humid. Chambers(TH-TG), Buông nhiệt độ độ ẩm,TH-TG-180, TH-TG-300.

Mã sản phẩm: TH-TG-180/300/408/800/100/1500
Thương hiệu: Jeiotech
Xuất xứ: Korea
Kho hàng: Có sẵn
Bảo hành: 12 tháng

Giá bán: Liên hệ

Yêu cầu báo giá 024 3994 2289 Chat Zalo

Tư vấn sản phẩm: 024 3994 2289
Dịch vụ sửa chữa, bảo dưỡng sau bán hàng
Phụ kiện thay thế, vật tư tiêu hao

Control range

Temperature range from -5 to 100°C Humidity range from 10 to 95% RH

Temperature range from -5 to 100°C Humidity range from 20 to 95% RH

Performance

Microprocessor PID control / Temperature calibration / Automatic tuning.
Advanced performance of low and high temperature and humidity control, achieved by adapting the humidification tank exterior to the chamber, added benefit for long term test.
Water recycling system reduce water consumption for longer operation.
Air-tight door closure with perfect sealed packing.
- Heat-resistant silicone packing completely blocks high heat leakage from the inner chamber.
- Two-point door latch also enhances tightness to door closure.
Energy efficiency is achieved by optimization of the insulation system.
- Even if the unit is operating at max. temperature, the surface of the unit doesn’t allow high temperatures of over 60℃.

Safety

Built in door lock with a key.
Automatic shut off after overheat alarm.
Low and empty water level alarm.
Power supply leakage breaker.
Over current protection.
Open door alarm.

Model			TH-TG-180	TH-TG-300	TH-TG-408	TH-TG-800	TH-TG-1000	TH-TG-1500
Chamber volume (L / cu ft)			180 / 6.4	314 / 11.1	419 / 14.8	770 / 27.2	997 / 35.2	1540 / 54.4
Controller			PID control (LCD Type)
Temperature ¹⁾	Range	without humidity (℃/℉)	-5 to 100 / 23 to 212
	Range	with humidity (℃/℉)	10 to 90 / 50 to 194			20 to 90 / 68 to 194
	Fluctuation¹⁾ (±℃/℉) at 40℃/60%RH		0.3 / 0.55
	Variation¹⁾ (±℃/℉) at 40℃/60%RH		0.5 / 0.9
Time	Heating		50min (-5℃ → 100℃)			55min (-5℃ → 100℃)
Time	Cooling		120min (100℃ → -5℃)			145min (100℃ → -5℃)

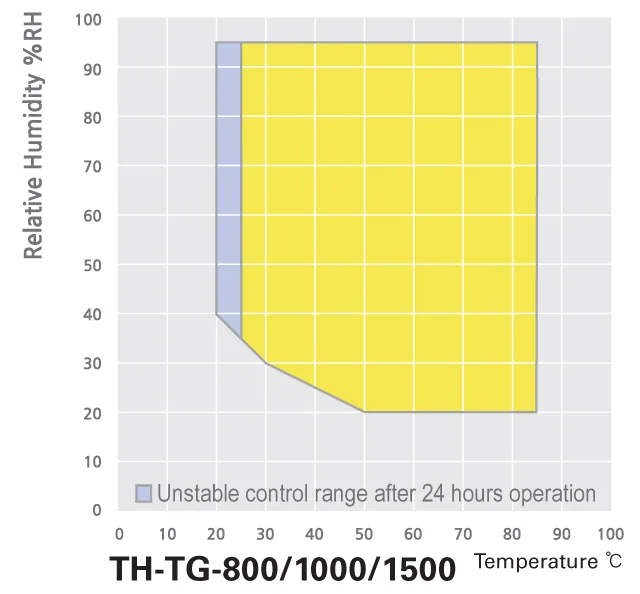

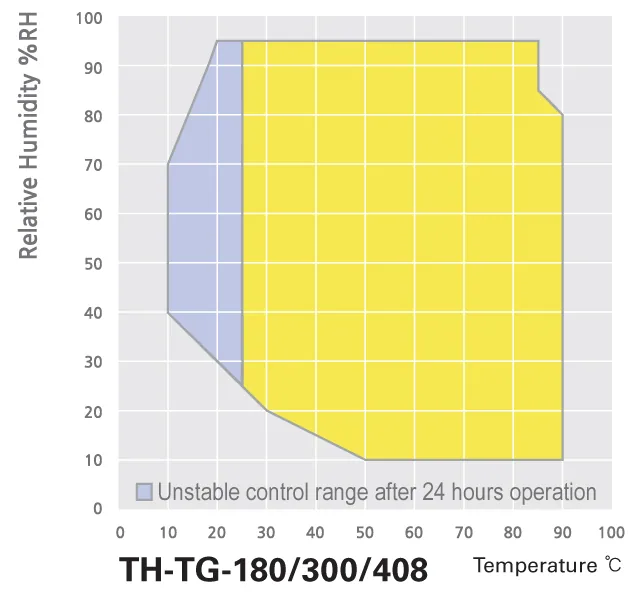

Humidity	Range (%RH)		10 to 95 ※ See feature page for more detailed humidity range check.			20 to 95 ※ See feature page for more detailed humidity range check.
	Fluctuation²⁾ (±%RH) at 60%RH/40℃		2
	Variation²⁾ (±%RH) at 60%RH/40℃		3
Refrigeration	System		Air - cooled
Refrigeration	Refrigerant		R- 507A
Water tank	Capacity (L / cu ft)		15 / 0.53					30 / 1.1
Water tank	Water quality		pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below
No. of wire shelves (standard / max.)			2 / 7	2 / 8	2 / 8	2 / 17	2 / 17	2 / 17
Distance of between shelves (mm / inch)			60 /2.4	60 /2.4	60 /2.4	60 /2.4	60 /2.4	60 /2.4
Max. load per shelf (kg / lbs)			20 / 44.1	25 / 55.1	25 / 55.1	40 / 88.2	40 / 88.2	40 / 88.2
Permitted total load (kg / lbs)			50 / 110.2	65 / 143.3	65 / 143.3	100 / 220.5	100 / 220.5	100 / 220.5
Dimension (W×D×H)	Viewing window (mm / inch)		200×330 / 7.9×13
	Interior (mm / inch)		500×600×600/ 19.7×23.6×23.6	748×600×700/ 29.4×23.6×27.6	748×800×700/ 29.4×31.5×27.6	748×920×1120/ 29.4×36.2×44.1	748×1190×1120/ 29.4×46.9×44.1	1100×1000×1400/ 43.3×39.4×55.1
	Exterior (mm / inch)		952×907×1503/ 37.5×35.7×59.2	1201×907×1525/ 47.3×35.7×60	1201×1107×1525/ 47.3×43.6×60.0	1200×1228×1993/ 47.3×48.3×78.5	1201×1498 ×1993/ 47.3×59.0×78.5	1554×1872×1935/ 61.2×73.7×76.2
	Net weight (kg / lbs)		220±10 / 485±22	250±10 / 551±22	280±10 / 617±22	360±10 / 794±22	410±10 / 904±22	480±10 / 1058±22
Cable port			Basically one hole provided / Ø 50mm (2”), Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
Interface port			Basically RS-232C, [RS-485 : optional]
Electrical requirements	AC230V, 1ph, 60Hz		12.3 A	14.5 A	14.5 A	15.4 A	15.4 A	25.0A
	Cat.No.		AAHC2001K	AAHC2011K	AAHC2021K	AAHC2031K	AAHC2041K	AAHC2051K
	AC230V, 1ph, 50Hz		14.8A	17.4A	17.4A	18.5A	18.5A	30.0A
	Cat.No.		AAHC2002K	AAHC2012K	AAHC2022K	AAHC2032K	AAHC2042K	AAHC2052K
