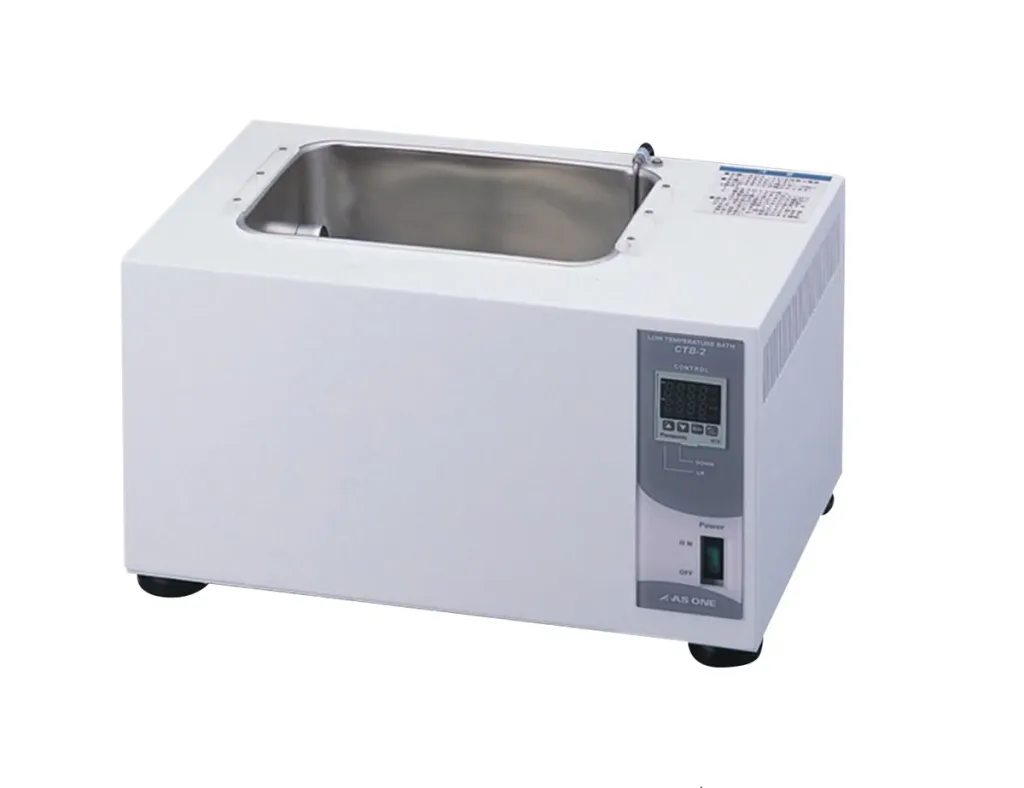

Bể điều nhiệt

Bể điều nhiệt

Bể điều nhiệt - Temperature Water Circulator: Thiết bị dùng để ổn định nhiệt độ, sử dụng trong các phòng Lab, QA, QC.

Mã sản phẩm

CTB-2

Thương hiệu

AS ONE

Xuất xứ

Nhật

Kho hàng

Có sẵn

Bảo hành

12 tháng

Giá bán: Liên hệ

Tư vấn sản phẩm: 024 3994 2289

Dịch vụ sửa chữa, bảo dưỡng sau bán hàng

Phụ kiện thay thế, vật tư tiêu hao

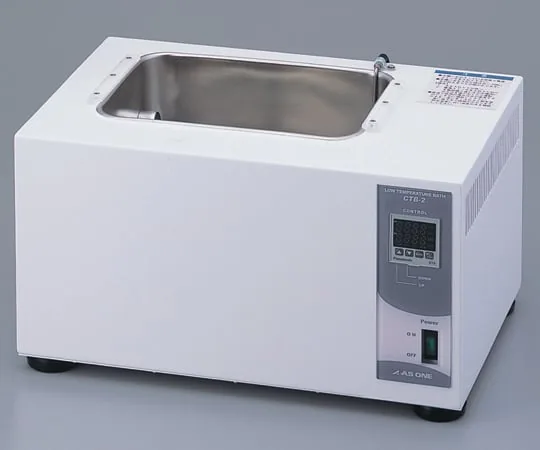

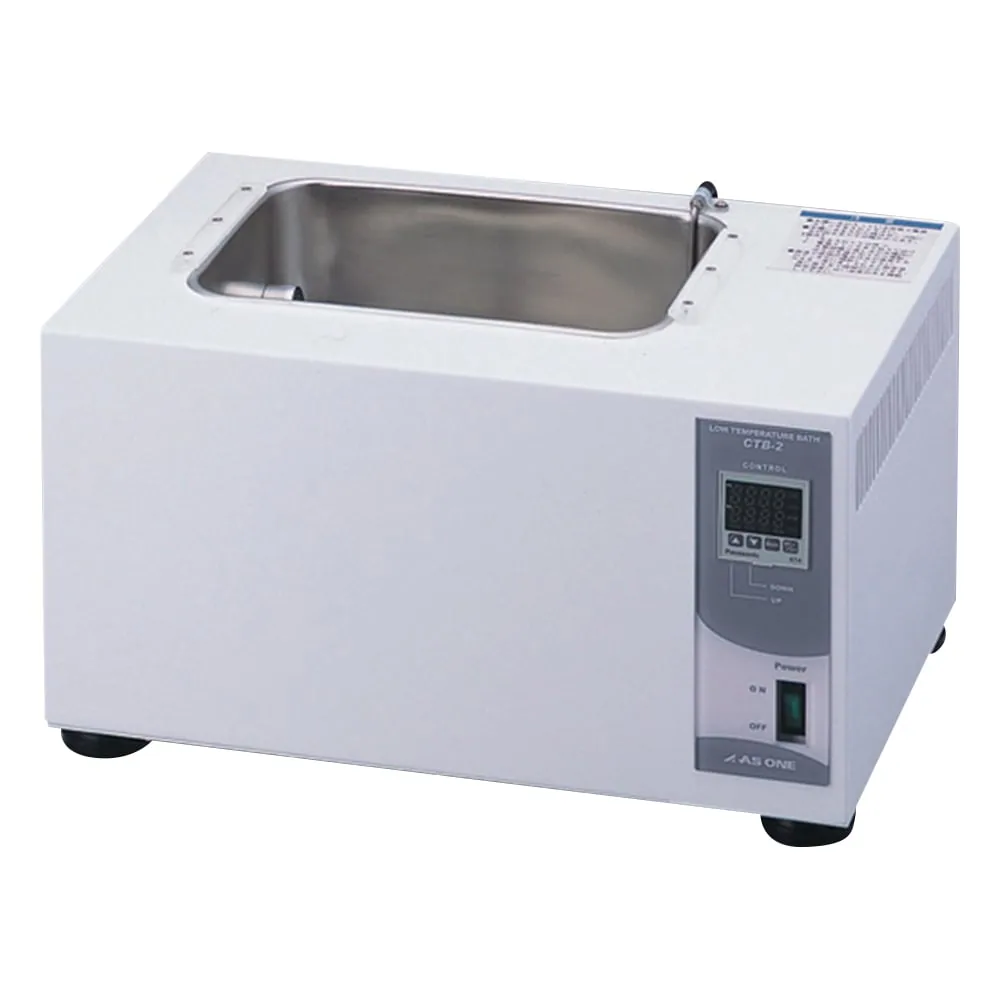

Temperature Water Circulator (Peltier Type) 3.0L　CTB-2

Features

Electronic cooling method adopting peltier elements realizes clean cooling and heating.　
Delicate temperature control is enabled for both heating and cooling.

Spec

temperature settings range: 4 to 65 ° C
Size: 435 x 280 x 235 mm
tank inner size (Top): 230 x 150 x 80 mm
Minimum set temperature unit: 0.1 ° C
Temperature adjustment accuracy: ± 1.0 ° C
Temperature control method: PID control and digital display
Heat cooling system: heating and cooling by Peltier element
Circulation Method: Agitation by electromagnetic pumps
Safety device: Overcurrent fuse
capacity: about 3.0 L
material: water tank / stainless steel (SUS304), main body / steel powder coating
power supply: AC100V, 50 / 60Hz, 2.1 A
power cord: 2 m (3P Plug)
Weight: 13 kg
* If R.T. 25 ° C is set at 5 ° C or below, it is recommended that the R.T. be below 20 ° C
Model Number: CTB-2
Package size：410×510×390 mm　16 kg

Specifications:

    temperature settings range: 4 to 65 ° C
    Size: 435 x 280 x 235 mm
    tank inner size (Top): 230 x 150 x 80 mm
    Minimum set temperature unit: 0.1 ° C
    Temperature adjustment accuracy: ± 1.0 ° C
    Temperature control method: PID control and digital display
    Heat cooling system: heating and cooling by Peltier element
    Circulation Method: Agitation by electromagnetic pumps
    Safety device: Overcurrent fuse
    capacity: about 3.0 L
    material: water tank / stainless steel (SUS304), main body / steel powder coating
    power supply: AC100V, 50 / 60Hz, 2.1 A
    power cord: 2 m (3P Plug)
    Weight: 13 kg
    * If R.T. 25 ° C is set at 5 ° C or below, it is recommended that the R.T. be below 20 ° C
    Model Number: CTB-2
    Package size：410×510×390 mm　16 kg
