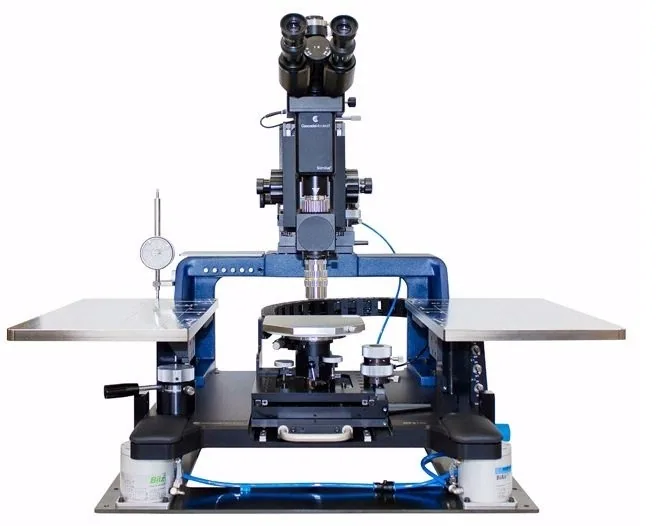

EPS150MMW

EPS150MMW Overview

Take the Shortest Path to Highest Accuracy

Tailored solution that addresses measurement needs for active and passive components through the terahertz frequency range. It enables the highest dynamic range and directivity—all without compromising electrical accuracy or mechanical stability.

Applications: RF/mmW

EPS150MMW Key Features

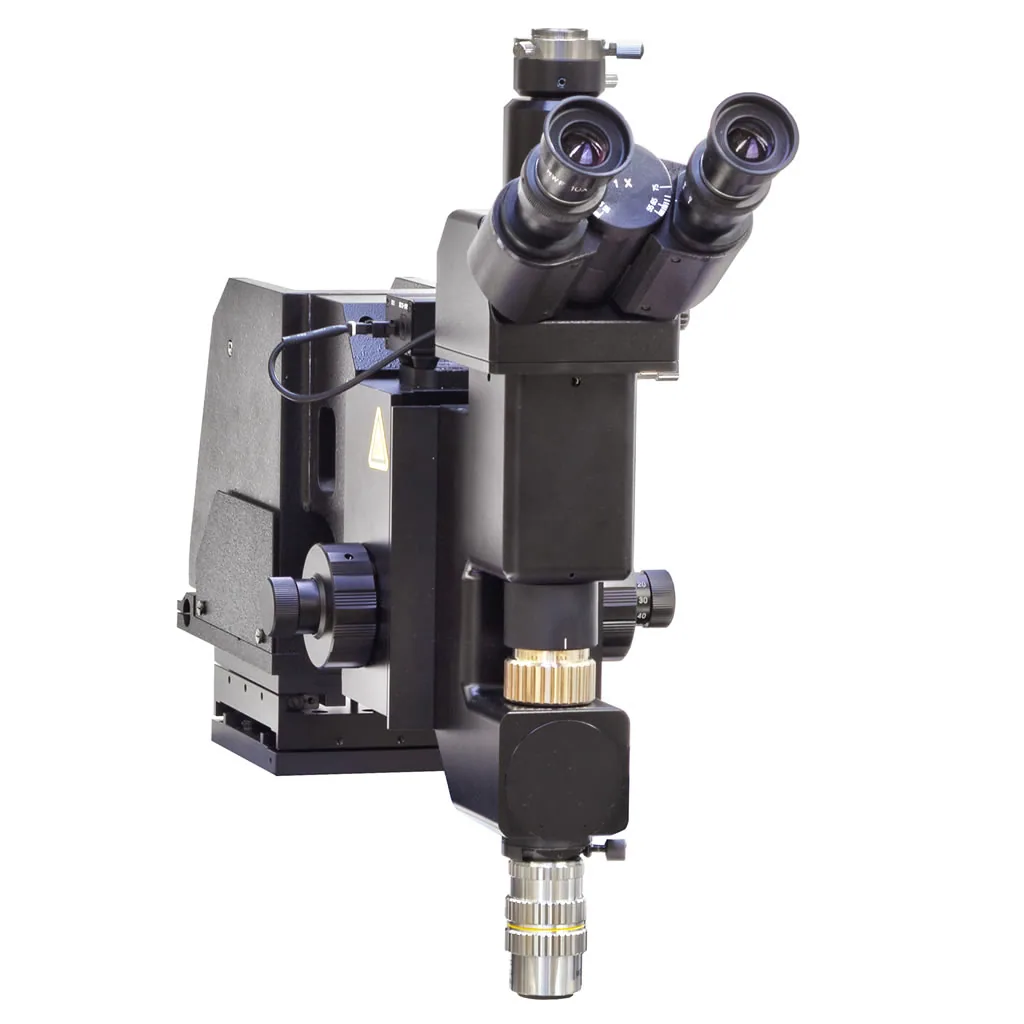

SlimVue Microscope

• Quick lens exchange
• 1 μm opitcal resolution
• Minimized scope footprint
• Fast change from navigation optics to high-resolution optics
• Resolving ‹ 50 μm pads
• Simple integration with any mmW modules

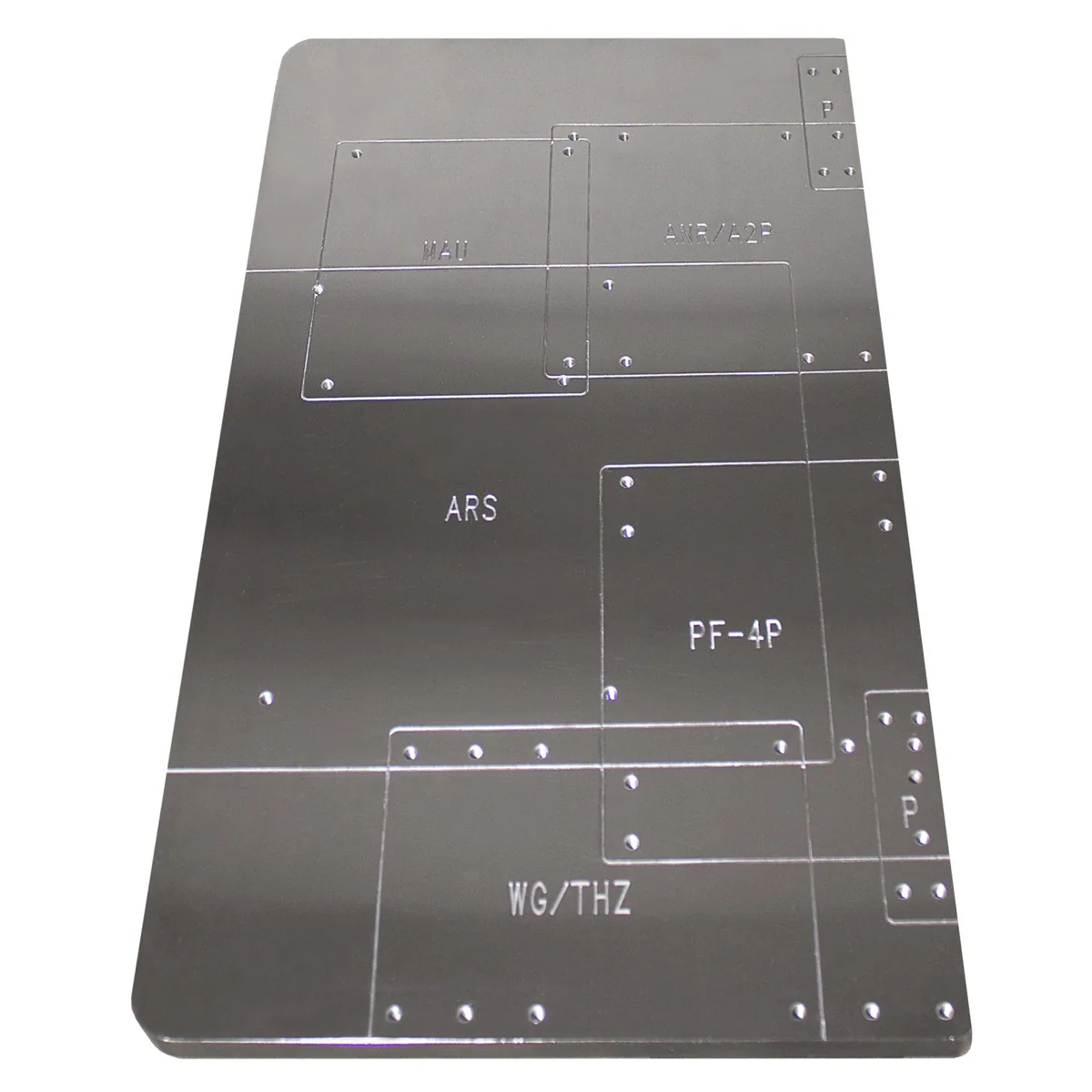

Application Specific SIGMA Kits

• Engraved guides on mmW platen
• Supports broadband, load pull, coax RF and banded waveguide configuration
• Optical feedback on platen position (gauge)
• Adaptable to any mmW/sub-THz applications
• Seamless integration with any mmW modules and tune
• Fast mounting and setup change

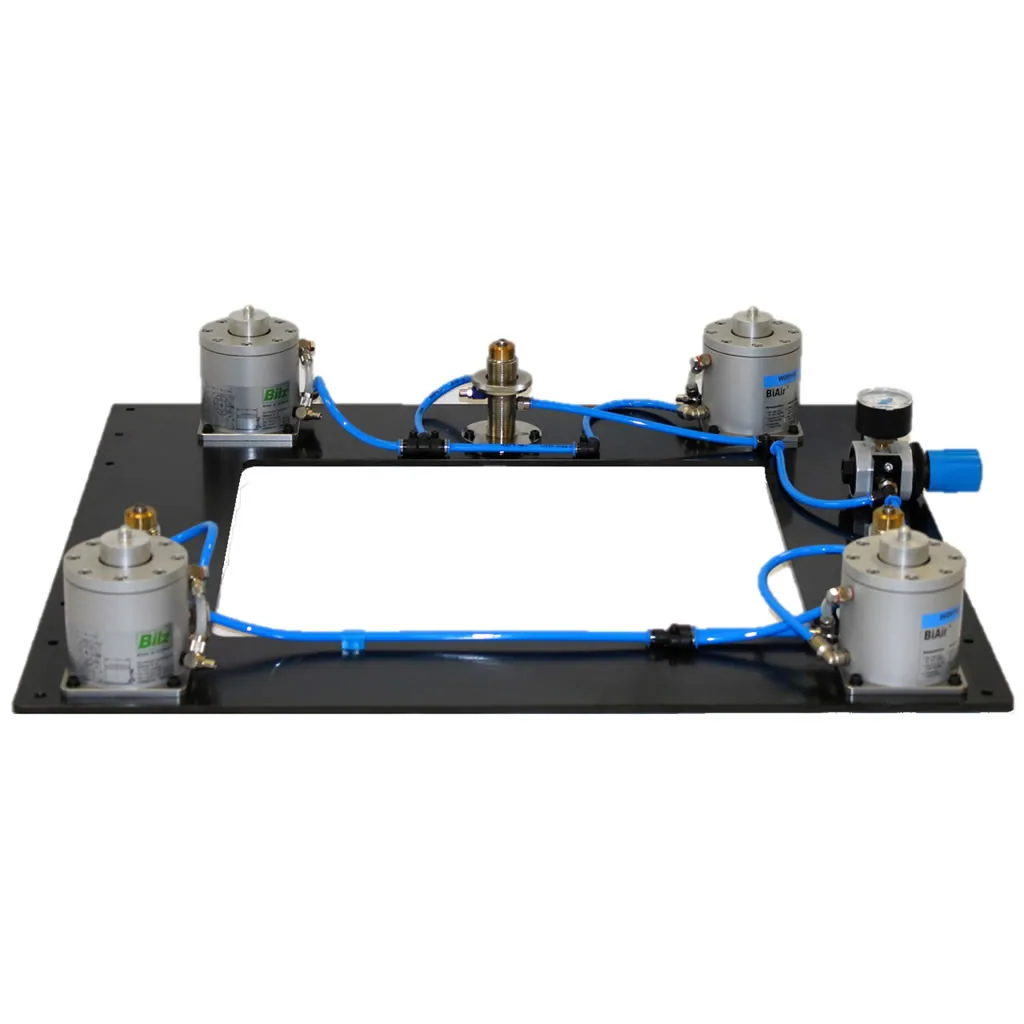

Vibration Isolation Platform

• High vibration damping
• Compact and solid base table
• Earthquake protection available (option)
• Maintain precise contact over time
• Protect devices and probes from damage
• Eliminate the need for additional anti-vibration table
