Infinity Probe Coaxial
- Infinity Probe – Coaxial; I40-DC; I50-DC; I67-DC; I110-DC; I145-DC; I40; I50; I67; I110; I145.
- Mã sản phẩm
- Infinity Probe Coaxial
- Xuất xứ
- USA
- Kho hàng
- Có sẵn
- Bảo hành
- 12 tháng
Giá bán: Liên hệ
- Tư vấn sản phẩm: 024 3994 2289
- Dịch vụ sửa chữa, bảo dưỡng sau bán hàng
- Phụ kiện thay thế, vật tư tiêu hao
Cascade

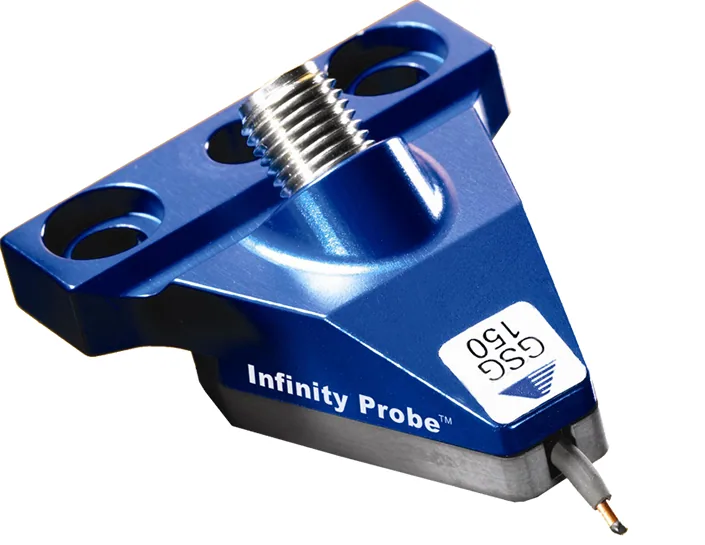

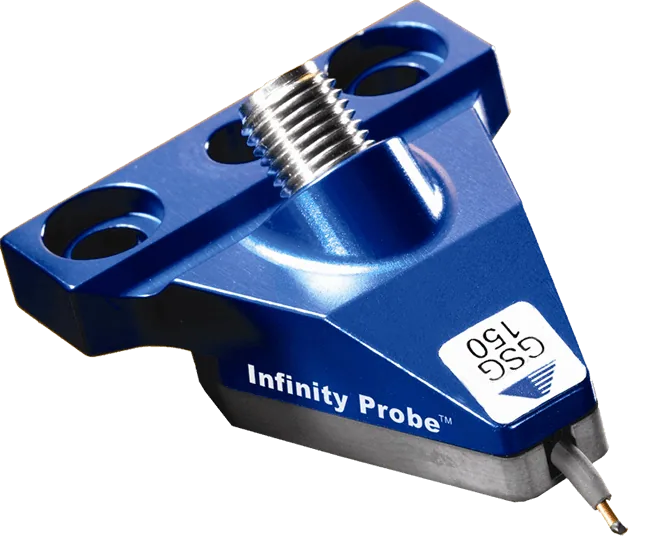

Infinity Probe – Coaxial
High-frequency performance with low, stable contact resistance on aluminum pad
nfinity Probe - Coaxial Overview
Ideal for device characterization and modeling, Infinity probe combines extremely low contact resistance on aluminum pads with unsurpassed RF measurement accuracy for highly reliable, repeatable measurements. Proprietary thin-film and coaxial probe technology reduces unwanted couplings to nearby devices and transmission modes.

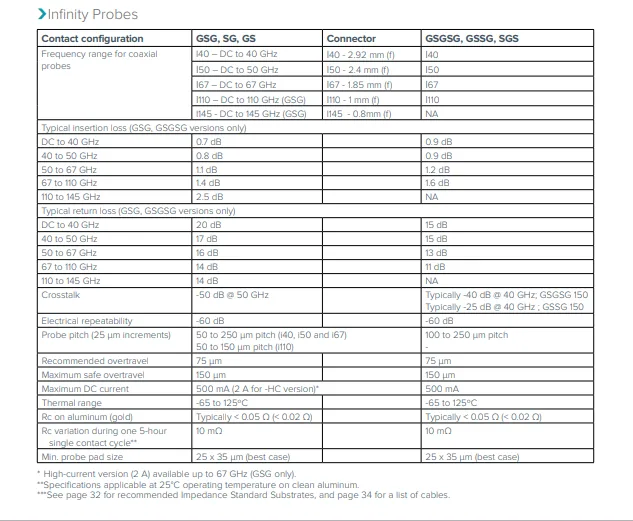

Infinity Probe - Coaxial Key Features
- Lithographic thin-film construction
- Excellent crosstalk characteristics
- Non-oxidizing nickel alloy tips
- Innovative force delivery mechanism
- 40GHz, 50GHz, 67GHz, 110GHz and 145GHz connectors available

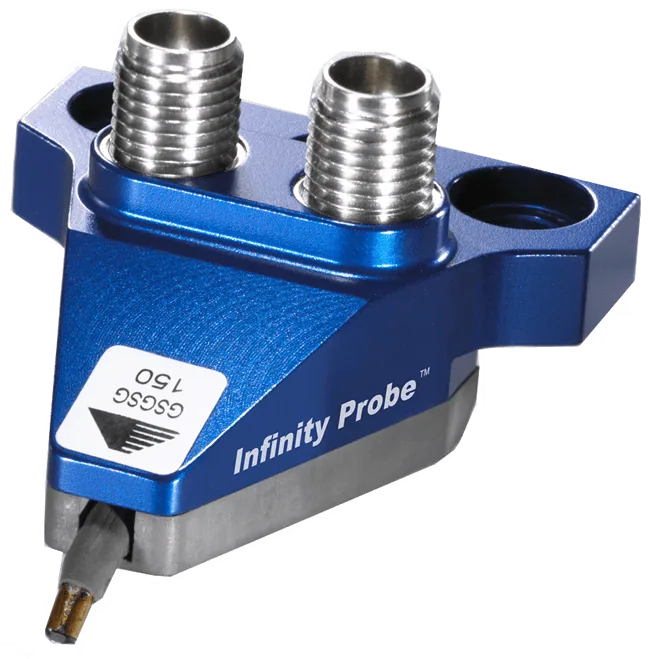

- GSG, SG, GS, GSGSG, GSSG, SGS configurations
- 50 to 250 µm pitches (other pitches available on request)
- High current version (2 A) available
Advantages
- Superior field confinement reduces unwanted couplings to nearby devices and transmission modes
- Superior measurement accuracy and repeatability
- Small scrub minimizes damage to aluminum pad
- Typical contact resistance < 0. 05 Ω on Al, <0.02Ω on Au
- Save valuable wafer space and reduce pad parasitics by being able to shrink pad geometries to 25 x 35 µ m (best case)
Probe System
