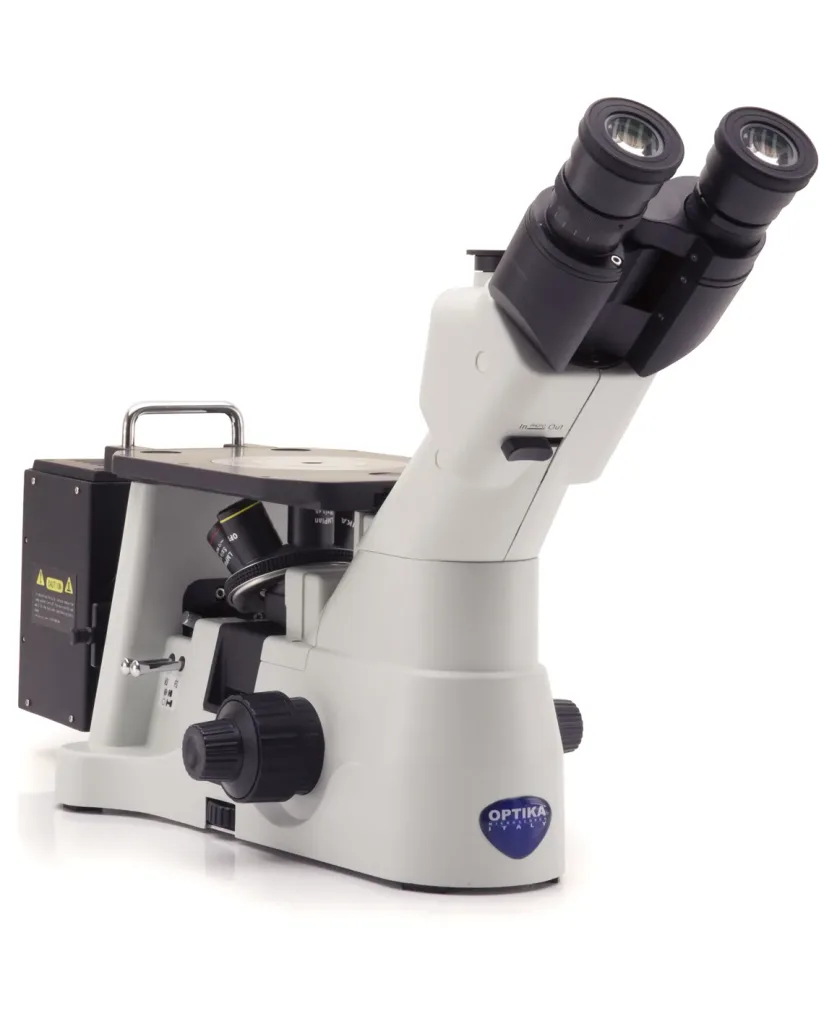

Kính hiển vi soi ngược IM-3 (MET)
- Kính hiển vi soi ngược IM-3 (MET)
- Mã sản phẩm
- Model: IM-3 (MET)
- Xuất xứ
- Italy
- Kho hàng
- Có sẵn
- Bảo hành
- 12 tháng
Giá bán: Liên hệ
- Tư vấn sản phẩm: 024 3994 2289
- Dịch vụ sửa chữa, bảo dưỡng sau bán hàng
- Phụ kiện thay thế, vật tư tiêu hao
IM-3 Material Science (MET)
Model: IM-3MET
Is purposely designed for metallographic and material science applications, combining a sturdy but compact structure with dedicated components for this industry, including IOS MET 5x, 10x, 20x and 50x objectives, working in absence of cover slide for processing large and heavy samples.
Objectives:
IOS PLAN LWD MET 5x, 10x, 20x, 50x.
Diaphragms:
Field diaphragm (centerable) and aperture diaphragm.
Illumination:
12V/50W halogen bulb in external lamp housing. Centerable bulb and brightness control on left side of the frame.
Filter sets:
Polarizer filter, rotatable analizer filter, blue and green filter.
Head
Trinocular, 45° inclined
Eyepiece
PL 10x/22
Nosepiece
Quintuple
Objectives
IOS LWD U-PLAN MET 5x, 10x, 20x, 50x
Stage
Fixed, 250×160 mm
Focusing
Coaxial coarse and fine, limit stop
Illuminator
Halogen bulb 50 W, manual brightness control
Related Literature:
OPTIKA – IM-3MET – Technical Datasheet – EN - 277.94 KB OPTIKA – IM-3MET – Technical Datasheet – IT - 276.46 KB OPTIKA – IM-3MET – Technical Datasheet – FR - 266.52 KB OPTIKA – IM-3MET – Technical Datasheet – ES - 281.59 KB OPTIKA – IM-3 – Brochure - EN - 1.54 MB Kính hiển vi - Microscope
